For almost two decades, Bio-Med, a leading manufacturer and exporter of medical disposables, has successfully served the medical industry with high-quality Infusion Therapy products. Infusion therapy is mainly used to treat various conditions, such as asthma, rheumatoid arthritis, immune deficiency, diabetes, and more. To increase the accuracy, safety, and delivery of the IV medication, we offer the best-in-class Infusion Therapy products.

The products help the medical professionals to deal with all aspects of medication and fluid infusions. With our wide range of products, it becomes easy to administer medication fluid directly into the patients’ bloodstream without causing them pain.

Our offered products make a clinical difference when it comes to ensuring the patients’ safety and reducing the risk of infection. They are sterile, latex-free, non-pyrogenic, and offer single-use.

SAFETY I.V. CANNULA
BIO-ON/BIO-PEN

( Without Wings and Without Injection Part )

View More Details +
• Automatically Covered the Needle’s sharp bevel with stainless steel safety clip after withdrawal of needle from catheter hub.
• Minimizing the risk of needle stick injuries.
• Smooth edged safety needle clip.
• The size of Safety I.V. Cannula is very similar to conventional I.V. Cannula and the technique of cannulation is similar to cannulation technique of conventional I.V. Cannula.

PACKAGING OPTIONS

• Unit Pack wit EO Gas Permeable Medical Grade Strip.
• Soft Blister pack using Medical Grade/ Tyvek Paper with PVC Free Plastic Film.
• Inner Carton Options: (a) I * 50 Units (b) 1*100 Units.
• Outer Carton Options:( a) 20*50 Units (b) 10*100 Units.

Size Color Catheter Catheter Length (mm) Water Flow Rate (ml./min.)
I.D mm O.D mm
18G green 0.9 1.3 45 80
20G pink 0.8 1.1 32 54
22G skyblue 0.6 0.9 25 33
24G yellow 0.5 0.7 19 20

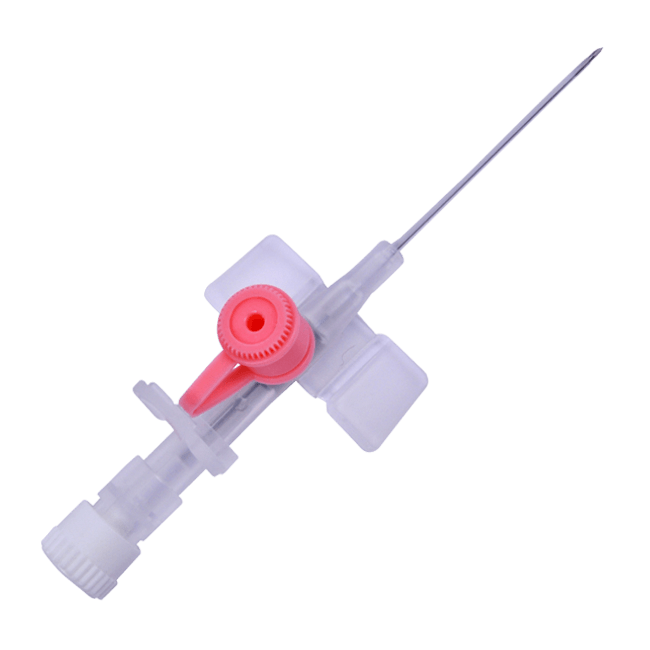

BIO-FLON I.V. CANNULA

( With Wings and Injection Part )

View More Details +
• The flash back chamber allows quick visualization of venous return.
• Wings specially designed for easy gripping and safe clamping.
• Needle cover to prevent accidental damage to needle & catheter.
• Color coded body/port cap as per ISO Standard.
• 6% luer taper as per International standard.
• Japanese stainless steel (AISI 304) needle with diameter and length adhering to all ISO standards.
• Triple point Needle for painless insertion.
• Thin walled, Radio-opaque stripped / transparent Teflon catheter, as per USP standard Class VI.
• Customized Automated Tipping Technology for lower penetration forces. in free penetration.
• Optimum trim distance for pain-free penetration.

PACKAGING OPTIONS

• Hard Blister pack using Medical Grade/ Tyvek Paper with standard Plastic Film.
• Soft Blister pack using Medical Grade/ Tyvek Paper with PVC Free Plastic Film.
• Inner Carton Options: (a) I * 50 Units (b) 1*100 Units.
• Outer Carton Options:( a) 20*50 Units (b) 10*100 Units.

Size Color Catheter Catheter Length (mm) Water Flow Rate (ml./min.)
I.D mm O.D mm
14G orange 1.7 2.1 45 270
16G silver 1.3 1.7 45 180
17G white 1.1 1.5 45 125
18G green 0.9 1.3 45 80
20G pink 0.8 1.1 32 54
22G blue 0.6 0.9 25 33
24G yellow 0.5 0.7 19 20
26G violet 0.45 0.6 19 15
BIO-CAN I.V. CANNULA

( With Wings and Without Injection Part )

View More Details +
• The flash back chamber allows quick visualization of venous return.
• Wings specially designed for easy gripping and safe clamping.
• Needle cover to prevent accidental damage to needle & catheter.
• Color coded body as per ISO Standard.
• 6% luer taper as per International standard.
• Japanese stainless steel (AISI 304) needle with diameter and length adhering to all ISO standards.
• Triple point Needle for painless insertion.
• Thin walled, Radio-opaque stripped / transparent Teflon catheter, as per USP standard Class VI.
• Customized Automated Tipping Technology for lower penetration forces.
• Optimum trim distance for pain free penetration.

PACKAGING OPTIONS

• Hard Blister pack using Medical Grade/ Tyvek Paper with standard Plastic Film.
• Soft Blister pack using Medical Grade/ Tyvek Paper with PVC Free Plastic Film.
• Inner Carton Options: (a) I * 50 Units (b) 1*100 Units.
• Outer Carton Options:( a) 20*50 Units (b) 10*100 Units.

Size Color Catheter Catheter Length (mm) Water Flow Rate (ml./min.)
I.D mm O.D mm
14G orange 1.7 2.1 45 270
16G silver 1.3 1.7 45 180
17G white 1.1 1.5 45 125
18G green 0.9 1.3 45 80
20G pink 0.8 1.1 32 54
22G blue 0.6 0.9 25 33
24G yellow 0.5 0.7 19 20
26G violet 0.45 0.6 19 15
BIO-ON I.V. CANNULA

( Without Wings and Without Injection Part )

View More Details +
• The flash back chamber allows quick visualization of venous return.
• Specially designed for easy gripping and safe clamping.
• Needle cover to prevent accidental damage to needle & catheter.
• Color coded body as per ISO Standard.
• 6% luer taper as per International standard.
• Japanese stainless steel (AISI 304) needle with diameter and length adhering to all ISO standards.
• Triple point Needle for painless insertion.
• Thin walled, Radio-opaque stripped / transparent Teflon catheter, as per USP standard Class VI.
• Customized Automated Tipping Technology for lower penetration forces.
• Optimum trim distance for pain free penetration.

PACKAGING OPTIONS

• Hard Blister pack using Medical Grade/ Tyvek Paper with standard Plastic Film.
• Soft Blister pack using Medical Grade/ Tyvek Paper with PVC Free Plastic Film.
• Inner Carton Options: (a) I * 50 Units (b) 1*100 Units.
• Outer Carton Options:( a) 20*50 Units (b) 10*100 Units.

Size Color Catheter Catheter Length (mm) Water Flow Rate (ml./min.)
I.D mm O.D mm
14G orange 1.7 2.1 45 270
16G silver 1.3 1.7 45 180
17G white 1.1 1.5 45 125
18G green 0.9 1.3 45 80
20G pink 0.8 1.1 32 54
22G blue 0.6 0.9 25 33
24G yellow 0.5 0.7 19 20
26G violet 0.45 0.6 19 15
BIO-PEN I.V. CANNULA

( Without Wings and Without Injection Part )

View More Details +
• The flash back chamber allows quick visualization of venous return.
• Wings specially designed for easy gripping and safe clamping.
alum.
• Needle cover to prevent accidental damage to needle & catheter.
• Color coded body as per ISO Standard.
• 6% luer taper as per International standard.
• Japanese stainless steel (AISI 304) needle with diameter and length adhering to all ISO standards.
• Triple point Needle for painless insertion.
• Thin walled, Radio-opaque stripped / transparent Teflon catheter as per USP standard Class VI
• Customized Automated Tipping Technology for lower penetration forces.
• Optimum trim distance for pain free penetration.

PACKAGING OPTIONS

• Unit Pack with EO Gas permeable Medical Grade Strip.
• Soft Blister pack using Medical Grade/ Tyvek Paper with PVC Free Plastic Film.
• Inner Carton Options: (a) I * 50 Units (b) 1*100 Units
• Outer Carton Options:( a) 20*50 Units (b) 10*100 Units

Size Color Catheter Catheter Length (mm) Water Flow Rate (ml./min.)
I.D mm O.D mm
14G orange 1.7 2.1 45 270
16G silver 1.3 1.7 45 180
17G white 1.1 1.5 45 125
18G green 0.9 1.3 45 80
20G pink 0.8 1.1 32 54
22G blue 0.6 0.9 25 33
24G yellow 0.5 0.7 19 20
26G violet 0.45 0.6 19 15
NEO-KATH I.V. CANNULA
( With Small Wings and Without Injection Port )
View More Details +
• The flash back chamber allows quick visualization of venous return.
• Wings specially designed for easy gripping and safe clamping.
• Needle cover to prevent accidental damage to needle & catheter.
• Color coded body as per ISO Standard.
• 6% luer taper as per International standard.
• Japanese stainless steel (AISI 304) needle with diameter and length adhering to all ISO standards.
• Triple point Needle for painless insertion.
• Thin walled, Radio-opaque stripped / transparent Teflon catheter, as per USP standard Class VI.
• Customized Automated Tipping Technology for lower penetration forces.
• Optimum trim distance for pain free penetration.

PACKAGING OPTIONS

• Hard Blister pack using Medical Grade/ Tyvek Paper with standard Plastic Film.
• Soft Blister pack using Medical Grade/ Tyvek Paper with PVC Free Plastic Film.
• Inner Carton Options: (a) I * 50 Units (b) 1*100 Units.
• Outer Carton Options:( a ) 20*50 Units (b) 10*100 Units.

Size Color Catheter Catheter Length (mm) Water Flow Rate (ml./min.)
I.D mm O.D mm
24G yellow 0.5 0.7 19 20
26G violet 0.45 0.6 19 15
MR. INJECT
( Sterile Hypodermic Single Use Syringe With Or Without Needles )
View More Details +
• Compatible with all medications.
• Transparent & smooth sliding plunger.
• Latex-free Elastomer Gasket.
• Luer Mount, with or without a needle.
• Ultra sharp needle, minimum pain.
• Manufactured as per ISO 7886.
• 5-year self-life.

PACKAGING OPTIONS

• Available in Ribbon & Blister pack
• Available Sizes

  • lml/cc
  • 2ml/cc
  • 3ml/cc
  • 5ml/cc
  • 10ml/cc
  • 20ml/cc
Syringes Size Needle Size Inner Box Blister Pack Outer Box Ribbon Pack Outer Box
1m1/cc 25G-28G 100 Pcs 2400 Pcs 2000 Pcs
2m1/cc 21G-26G 100 Pcs 2400 Pcs 2000 Pcs
3m1/cc 21G-26G 100 Pcs 2400 Pcs 2000 Pcs
5m1/cc 21G-24G 100 Pcs 2400 Pcs 2000 Pcs
10m1/cc 21G-24G 100 Pcs 2400 Pcs 2000 Pcs
20m1/cc 21G-22G 100 Pcs 2400 Pcs 2000 Pcs
MR. INJECT
( Sterile Hypodermic Single Use Needle )
View More Details +
• Non-toxic Medical Grade Color coded Needle hub.
• Three face profile, lancet point.
• Burr free.
• Minimal pain on insertion.

PACKAGING OPTIONS

• Available in Blister Pack

Colour Code of Hub Guage OD (MM) + 0.05MM
white 16G 1.6mm
pink 18G 1.2mm
cream 19G 1.1mm
yellow 20G 0.9mm
green 21G 0.8mm
black 22G 0.7mm
blue 23G 0.6mm
mediumpurple 24G 0.5mm
orange 25G 0.5mm
brown 26G 0.4mm
SAFE-WAYS
( 3-Way Stop Cock )
View More Details +
• Designed to provide an additional infusion option between line and venipuncture.
• Fully transparent polycarbonate body for visualization of flow.
• 6% luer taper as per International Standard.
• Arrow indication marks for indicating direction of flow.
• Also available with lipid resistant feature.
• Rotating dead space for accurate drug administration.
• Continuous flow channels.
• Tight covers for all ends.
• Pressure tested hydrostatically for upto 60 PSI.
• Rotation allowed for 360 degree.
• Red & blue pegs for arterial and venous line identification, available an request.

PACKAGING OPTIONS

• Hard blister packed using Medical Grade/ Tyvek Paper
• with standard Plastic film
• Inner Carton Options: 1*50 Units
• Outer Carton Options: 20*50 Units

SAFE-WAYS
( Cock With Extension Tube )
View More Details +
• Designed to facilitate infusion from different sources and their control.
• PVC tubing for easy visualization of low, integrated with three way stop cock.
• 6% luer taper as per International Standard.
• Arrow indication marks in 3-way stop cock for direction of flow.
• Also available with lipid resistant feature.
• Pressure tested hydrostatically up to 60 PSI.
• Rotation allowed for 360 degree.
• Soft frosted and kink resistant PVC tubing.

PACKAGING OPTIONS

• Medical Grade paper pouch with standard Plastic film
• Inner Carton Options: (a) 1*50 Units (5cm -25 cm) (b) 1*40 Units (50 cm) (c) 1*30 Units (100cm —200cm)
• Outer Carton Options: (a) 10*50 Units (5cm -25 cm) (b) 10*40 Units (50 cm) (c) 10*30 Units (100cm —200cm)
• Available Sizes

  • 5cm
  • 7cm
  • 10cm
  • 25cm
  • 50cm
  • 75cm
  • 100cm
  • 150cm
  • 1200cm
INFUSION SET (I.V. SET)
( With/ Without Air Vent For Rapid Adjustment Of Fluid Level )
View More Details +
• Constitute extra strong sharp spike with flexible drip chamber with/ without air vent for rapid adjustment of fluid level.
• Clear transparent and flexible drip chamber to see flow rate.
• Disc Filter in the drip chamber Flow rate = 20 drops/ml.
• Accurate flow controller.
• Strong roller clamp with provision to hold the tube for changing, the fluid container without disturbing the flow rate.
• Kink free 150 cm transparent PVC tubing for easy visualization of flow.
• 6% taper luer as per International Standard
• Flush ball type latex Injection membrane for intermittent medication.
• Also available with a Y-injection site (with or without Latex).
• Options of luer lock, Luer slip needle available.

AVAILABLE OPTIONS

• I.V. Set-Vented
• I. V. Set-Non Vented
• Microdrip Set
• I. V. Set With Y-Site And Needle Free Y-Site
• Infusion Set With 3 Way Stop Cock

PACKAGING OPTIONS

• Medical Grade paper pouch with standard plastic film 500 Units
• Outer Carton Option

  • W/O Airvent
  • Needle Free Y Site
  • Micro Drip
  • Witrh Flow Regulator
  • I.V. Set with Y Site
  • I.V. Set With 3-way Stop Cock
BLOOD ADMINISTRATION SET (B.T. SET)
( With / Without Vent & Filte To Prevent Passage Of Any Clot )
View More Details +
Use in delivering measured and regulated blood and blood components to patient.Constitutes of Cylindrical drip chamber with / without vent & filte to prevent passage of any clot into the patient.It is designed to connectan adult sized blood component to the transfusion recipient and provide final filtration of the blood component during transfusion.

• Soft, smooth transparent & kink free PVC tube for easy visualization of flow.
• 6°A luer taper as per International Standard.
• Clear transparent and flexible drip chamber.
• Molded latex flush ball Injection membrane for intermittent medication.
• Soft and kink resistance PVC Tubing of 150 cm length.
• Accurate flow controller.
• Flow rate = 20 drops/ml.
• Option of luer lock / luer slip, “Y” port and needle

PACKAGING OPTIONS

• Medical Grade paper pouch with standard plastic Film/Ribbon Pack
• Outer Carton Option : 400 Units

MEASURED VOLUME ADMINISTRATION SET
( Burette Set )
View More Details +
Burette chamber is scaled for accurate measurement of medication for critical and pediatric /neonatal care.

• Floating auto shut-off valve in the calibrated chamber.
• Automatically shuts off drain path when the chamber is empty.
• Also acts as a level indicator in the chamber
• Clear soft cylindrical & calibrated measured volume chamber with bold graduations.
• 15-micron fluid filter.
• Available in size: 100 ml, 110 ml & 150 ml.
• Kink free transparent PVC tubing for easy visualization of flow.
• Tube length 150 cm, 180 cm & 200 cm.
• 6% taper luer, as per International Standard.
• Approximately 60 drops/ml.

AVAILABLE OPTIONS

• Luer Lock and Luer Slip
• With or Without Needle
• With or Without Y Site
• Latex or Latex Free
• Air Vented or Non-Vente Spike

PACKAGING OPTIONS

• Medical Grade paper pouch with standard plastic Film/Ribbon pack
• Outer Carton Option : 100 Units

EXTENSION LINES
( Designed To Extend The Infusion Line. Away From The Patient. )
View More Details +
• Available in two pressure variants.
• 6% luer taper as per International Standard.
• Soft, frosted and kink resistant PVC tubing.
• Size 10cm, 25cm, 50cm, 100cm, 150 cm & 200cm.

AVAILABLE OPTIONS

• Low Pressure.
• High Pressure.
• Extension tube with I.V. Flow Regulator.
• Multi-Ways Extension lines.

PACKAGING OPTIONS

• Low and High Pressure
• Medical Grade paper pouch with standard Plastic film
• Inner Carton Options:- (a) 1*50 Units (10cm -100 cm) (b) 1*30 Units (150cm — 200cm)
• Outer Carton Options:- (a) 10*50 Units (10cm -100 cm) (b) 10*30 Units (150cm — 200cm)

EXTENSION LINES ( FLOW REGULATOR )
( With Standard Plastic Film )
View More Details +
• Available in two pressure variants.
• 6% luer taper as per International Standard.
• Soft, frosted and kink resistant PVC tubing.
• Size 10cm, 25cm, 50cm, 100cm, 150 cm & 200cm.

AVAILABLE OPTIONS

• Low Pressure.
• High Pressure.
• Extension tube with I.V. Flow Regulator.
• Multi-Ways Extension lines.

PACKAGING OPTIONS

• Medical Grade paper pouch with standard Plastic film
• Inner Carton Options:- (a) 1*40 Units
• Outer Carton Options:- (a) 10*40 Units

EXTENSION LINES ( MULTI-WAY EXTENSION LINES )
( With Standard Plastic Film )
View More Details +
• Available in two pressure variants.
• 6% luer taper as per International Standard.
• Soft, frosted and kink resistant PVC tubing.
• Size 10cm, 25cm, 50cm, 100cm, 150 cm & 200cm.

AVAILABLE OPTIONS

• Low Pressure.
• High Pressure.
• Extension tube with I.V. Flow Regulator.
• Multi-Ways Extension lines.

PACKAGING OPTIONS

• Medical Grade paper pouch with standard Plastic film
• Inner Carton Options:- (a) 1*50 Units
• Outer Carton Options:- (a) 10*50 Units

LUER LOCK
( Medical Grade Paper with standard plastic film )
View More Details +
Luer Lock is the thread stopper used to stop leakage when connected to infusion devices.
• White color Luer lock.
• 6% Luer taper as per International Standard.
• Sterile • Single Use • Non-Pyrogenic

PACKAGING OPTIONS

• Unit Pack- Medical Grade Paper with standard plastic film.
• Inner carton- 200 pcs
• Outer Carton- 4000 pcs

INJECTION STOPPER
( Medical Grade Paper with standard plastic film )
View More Details +
Injection Stopper is the thread stopper with injection site used to stop leakage when connected to infusion devices and also used for extra medication along with infusion at the same time.

• Latex-free Injection stopper
• 6% luer taper as per International Standard
• Sterile • Single Use • Non-Pyrogenic

PACKAGING OPTIONS

• Unit Pack- Medical Grade Paper with standard plastic film
• Inner carton- 250 pcs
• Outer Carton- 5100 pcs

Download E-Catalogue
